Comprehensive Guide to Installing an X-Ray Machine: Key Preparations for Optimal Performance

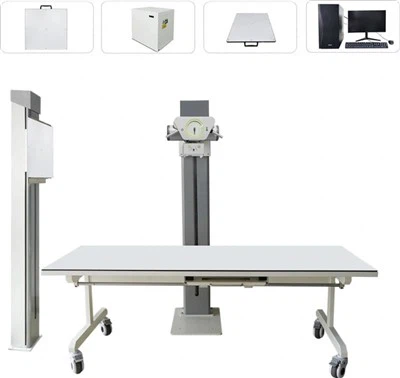

Installing an X-ray machine is a meticulous process that requires thorough planning and detailed execution. Ensuring the installation is done correctly is essential for safe operation, reducing future disruptions, and maintaining optimal machine performance. From grounding the machine to designing the room layout, each step contributes to the overall success of the installation. In this guide, Yueshen Medical provides a detailed breakdown of the essential preparation steps required to ensure a smooth and effective installation of an X-ray machine.
1. The Importance of Grounding for X-Ray Machines
Grounding is one of the most crucial steps in ensuring both the safety of personnel and the optimal functioning of the X-ray machine. It involves connecting the machine to the earth to prevent electrical shocks and ensure the circuits function correctly. Proper grounding is essential for two main reasons: safety and operational effectiveness.
Safety Grounding: This is primarily aimed at protecting the staff and patients from electrical hazards. Grounding ensures that any excess electrical current is safely diverted into the ground, preventing shocks.
Operational Grounding: This serves as a reference point for the machine's circuits, enabling the proper measurement of electrical currents and preventing malfunctions.
To ensure effective grounding, the grounding resistance must be regularly inspected. For standard X-ray machines, the grounding resistance should be ≤3 ohms, while more specialized machines, such as vascular subtraction (DSA) systems, require a grounding resistance of ≤1 ohm.
Practical Grounding Technique: One cost-effective and reliable grounding method is the use of galvanized pipes. In this method, three galvanized pipes (with a diameter of 50 mm and a length of 2.5 meters) are driven into the ground, spaced three meters apart. The pipes are connected with iron sheets, and grounding wires are welded to each pipe and connected to the machine's grounding terminal. This method ensures a stable grounding system at a lower cost and is relatively easy to implement.
2. Power Supply Considerations for X-Ray Machines
The power supply is another critical factor in the installation process. X-ray machines require a consistent and reliable power source to function properly. The machine's power requirements, including its internal resistance and instantaneous power draw, must be taken into account when determining the type of wiring and electrical setup.
Key Power Supply Considerations:
Cable Diameter: The diameter of the power cable (typically copper-core) must match the machine's power needs. For standard X-ray machines, such as gastrointestinal or photographic models, a 30-square-millimeter copper-core power cable is typically sufficient. For more advanced machines, such as CT scanners or DSA units, a thicker cable (50 square millimeters) may be required.
Power Format: The power supply should follow a three-phase system, either in a three-phase five-wire (three phase wires, one neutral wire, and one ground wire) or three-phase four-wire format (three phase wires, one neutral, and one ground). Attention must be paid to the phase sequence to avoid incorrect operation.
Power Control Box Placement: The control box should be located in an accessible area, typically within the control room, so that operators can easily turn the machine on and off as needed.
3. Designing the Room for X-Ray Machine Installation
Room design is a vital aspect of X-ray machine installation, as the machine's environment plays a significant role in its functionality and the safety of the operators. The room must be carefully planned to accommodate the machine's technical requirements while ensuring sufficient radiation protection for staff and patients.
Key Room Design Considerations:
Room Layout: The layout of the X-ray room and control room must be designed to facilitate efficient machine operation while ensuring protection against radiation exposure. The position of the machine, its accessibility, and the arrangement of control panels must be planned with ease of use in mind.
Room Dimensions: The height of the room is a critical factor. The ceiling height should meet the machine's operational requirements, particularly in terms of the maximum movement of the X-ray arm. Adequate space should be provided to prevent operational limitations.
Radiation Protection: Since X-ray machines emit radiation, protective measures are necessary to ensure the safety of operators and nearby individuals. Installing lead-lined walls and observation windows made from lead glass is crucial for radiation shielding. The glass should be positioned in the center of the control room wall, approximately 800-850 mm from the floor.
Cable Management: Holes should be pre-drilled in the walls of both the machine room and the control room for routing power cables and other necessary wiring. The size and number of these holes depend on the machine's power requirements and its configuration. Generally, these holes are 200 mm × 200 mm and located 100 mm above the floor.
Cable Trays and Door Design: For new construction, it's important to reserve space for underground cable trenches to manage and protect the wiring. Room doors must be specially designed to provide adequate radiation shielding. Double doors are often recommended for ease of access and enhanced protection.
4. Additional Considerations for Successful Installation
In addition to grounding, power supply, and room design, several other factors must be considered to ensure a seamless installation process:
Ventilation and Cooling: X-ray machines generate heat during operation, so it's important to install a proper ventilation or air conditioning system to prevent overheating and ensure the machine operates within a safe temperature range.
Radiation Monitoring: Installing radiation monitoring devices is essential to ensure that radiation levels in the X-ray room and control room remain within safe limits, protecting both the operators and patients.
Operator Protection: The control room should be designed to provide a clear view of the X-ray machine while ensuring the operator is fully protected from radiation. Proper shielding and placement of control consoles are essential to maintaining a safe working environment.
Conclusion
Installing an X-ray machine is a complex project that requires detailed preparation and attention to several critical factors, including grounding, power supply, room design, and safety measures. By carefully planning each stage of the installation process, healthcare facilities can ensure the safe and efficient operation of their X-ray machines, protecting both staff and patients while maximizing the performance of this essential medical equipment.
Following these best practices and considerations will help facilitate a successful installation, ensuring that the X-ray machine functions correctly and meets all safety standards. Proper installation is not only vital for immediate use but also plays a key role in the long-term reliability and durability of the equipment.
