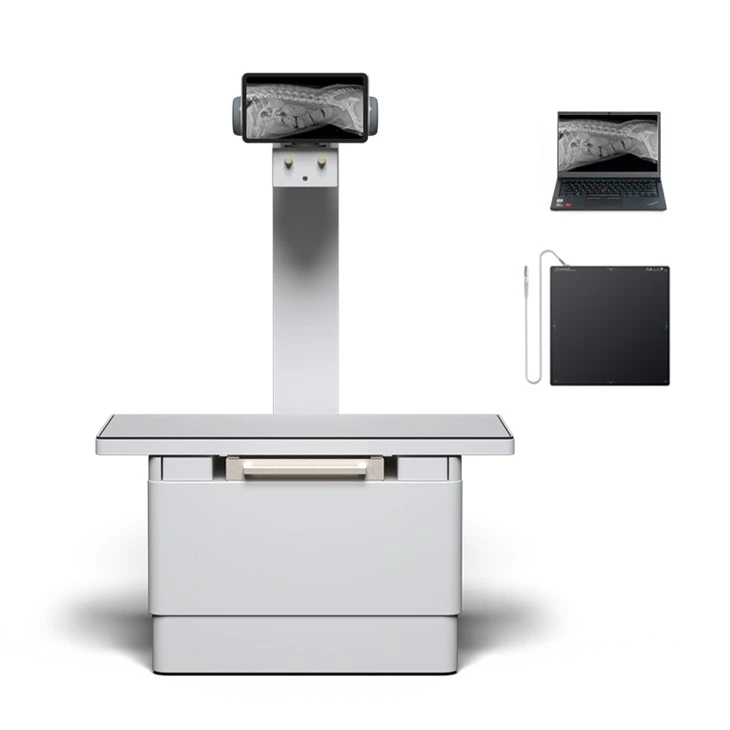

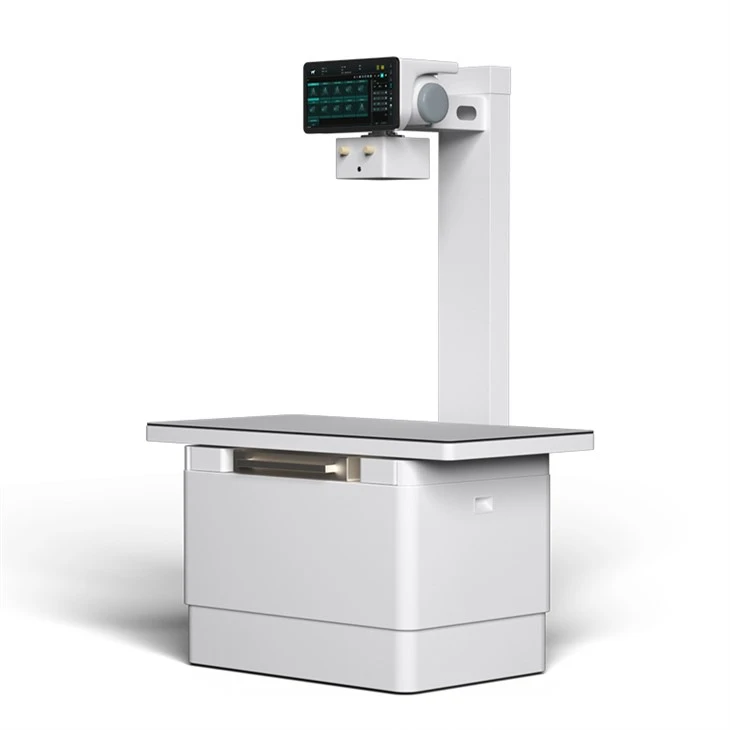

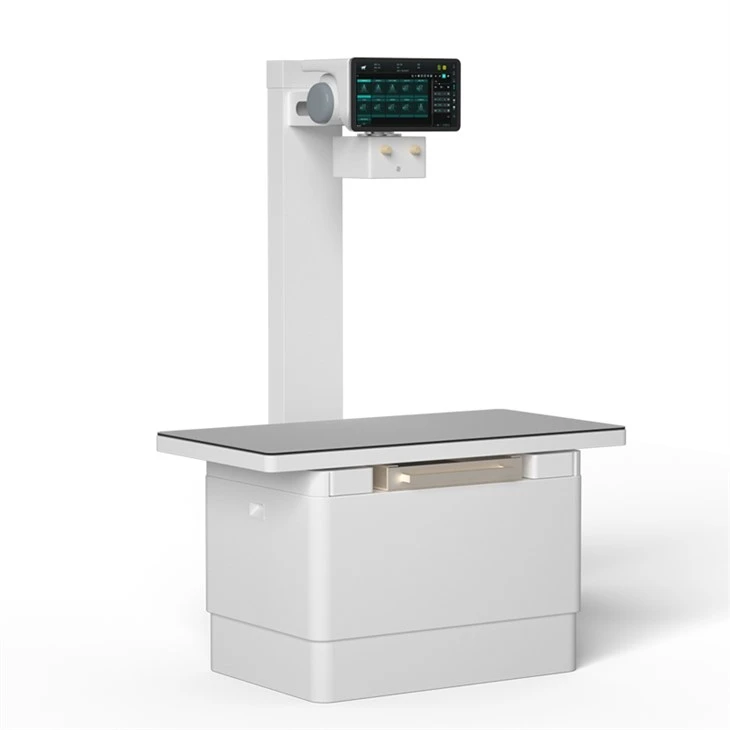

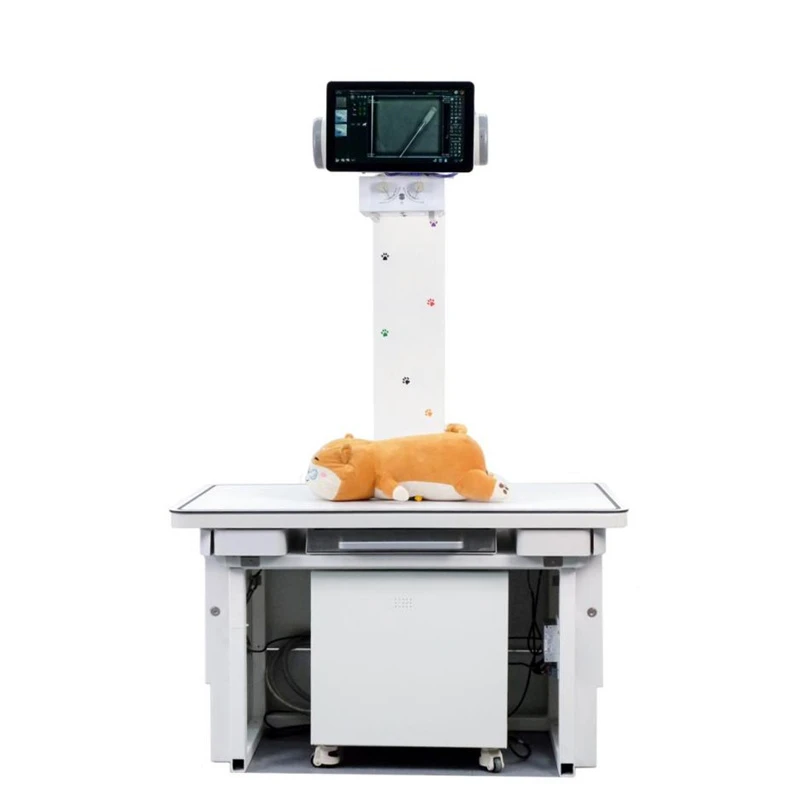

32KW Veterinary X-ray Machine

The power of generators 32KW the sliding column x-ray system comes complete with a four way floating top table with integral under surface cassette tray.
Send Inquiry

Product Introduction Specification

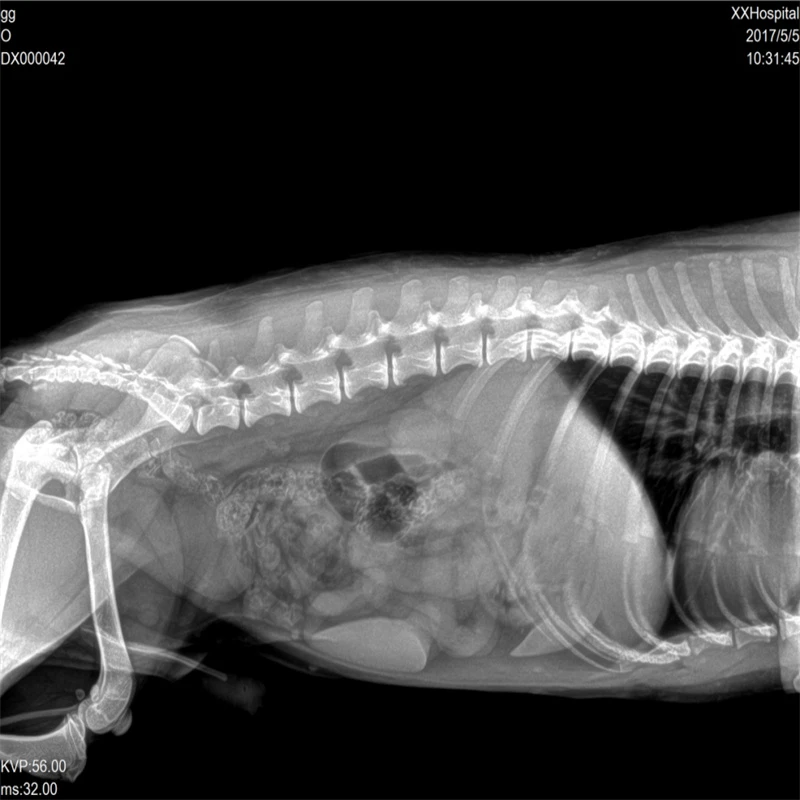

The 32KW DR Veterinary X-Ray Machine offers a number of benefits for veterinary professionals. One of the main benefits is the high-quality images that it produces with the power of generators 32KW, DR generating filming, all of which can be used to diagnose a range of conditions, including broken bones, tumors, and internal injuries. This Veterinary X-ray machine equipped with the sliding column x-ray system, a four way floating top table and integral under surface cassette tray. It helps veterinarians to make more precise position of X-ray filming, more informed treatment decisions, which can improve the outcomes for theanimals under their care.



This 32KW DR Veterinary X-ray Machine is also very user-friendly, which makes it easy to use even for those who are not familiar with digital radiography. The machine is designed to be safe for both the animal and the operator, and its digital technology reduces the number of retakes that are required. This saves time and minimizes the exposure of the animal to radiation.



For this Veterinary Machine, we provide the OEM and ODM service, which generate high









product-800-800
product-800-800



2 packages:

wooden case packing: size 153 * 91 * 92cm 186KG

High Pressure: 62 * 52 * 72 CM 97kg



Hot Tags: 32kw veterinary x-ray machine, China 32kw veterinary x-ray machine manufacturers, suppliers, factory, 20KW DR x ray machine for veterinary, Veterinary X ray Machine, Digital X ray Machine, 32KW DR Vet x ray Machine

YSF32V-B



Generator



Power voltage

1-phase 220VAC ±10%,50Hz,16A;3-phase 380VAC±10%

Maximum Working Frequency

≥30KHz

Nominal Electric Power

32kw(@100kv,200mA,100ms)

KV range

40-125KV

mA range

10-320mA

mAs range

0.1-400mAs

Photo form time

3ms-6300ms

X-ray tube



Working voltage

40KV-125KV

Maximum power (0.1 S)

Small focus 20 kw, Large focus 40 kW

Nominal value

Large focus 1.2,Small focus 0.6

Maximum heating filament characteristics

5.3A

Anode speed (50HZ)

2800rpm

Anode angle

12°

Inherent filtering

1.0mmAL/75kV

Anode Heat Content

110KJ(150KHU)

Tube component heat capacity

900KJ(1300KHU
