32KW DR Veterinary X-ray Machine

The power of generators 32KW, DR generating filming, the sliding column x-ray system comes complete with a four way floating top table with integral under surface cassette tray.

Send Inquiry

Product Introduction Specification

The power of generators 32KW, DR generating filming, the sliding column x-ray system comes complete with a four way floating top table with integral under surface cassette tray.

The counter balanced adjustable height tube column, supporting the dual focus rotating anode Toshiba tube, not only enables the focal film distance to be adjusted to any height above the table top, but slides in floor mounted runners beyond the full length of the table making standing lateral images easier than ever.

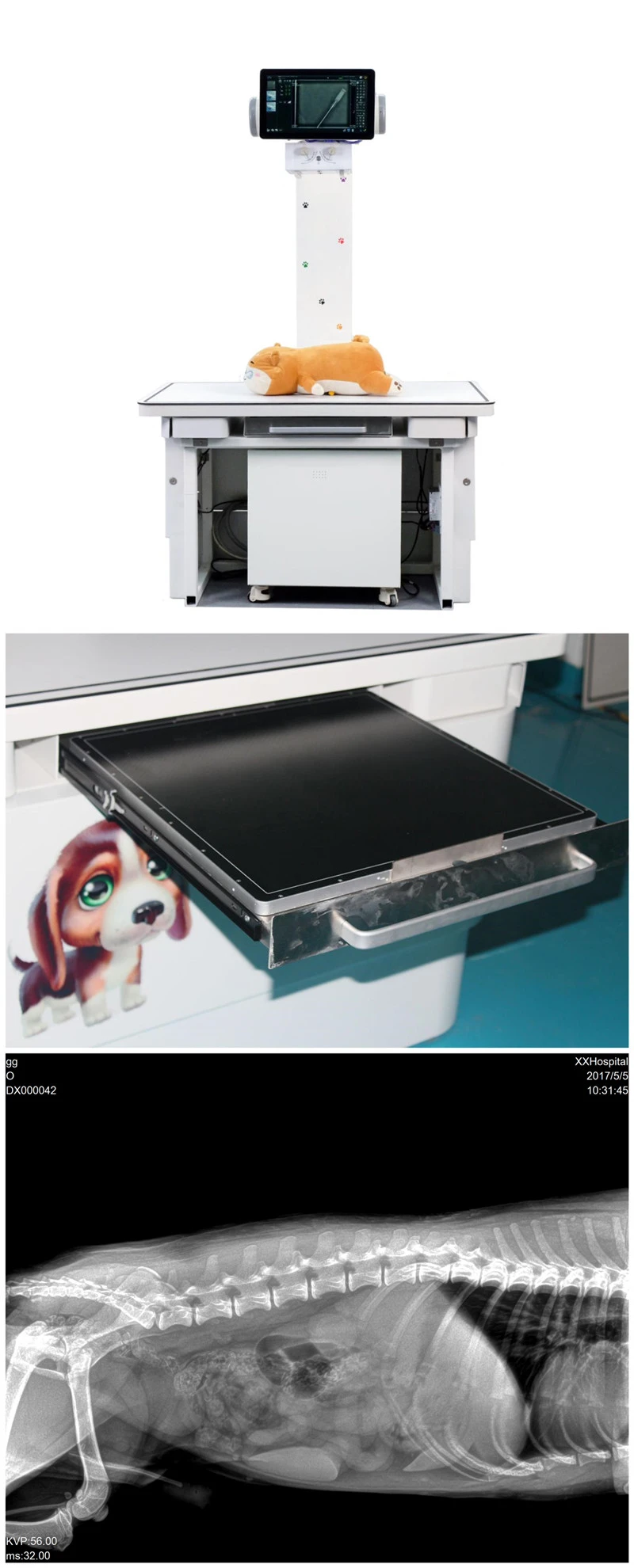

product-800-1980

2 packages：

wooden case packing: size 153 * 91 * 92cm 186KG

High Pressure: 62 * 52 * 72 CM 97kg

Hot Tags: 32kw dr veterinary x-ray machine, China 32kw dr veterinary x-ray machine manufacturers, suppliers, factory, 20KW DR x ray machine for veterinary, Digital X ray Machine, 32KW DR Vet x ray Machine, Veterinary X ray Machine

YSF32DRV-B

Generator
Power voltage	1-phase 220VAC ±10%,50Hz,16A;3-phase 380VAC±10%
Maximum Working Frequency	≥30KHz
Nominal Electric Power	32kw(@100kv,200mA,100ms)
KV range	40-125KV
mA range	10-320mA
mAs range	0.1-400mAs
Photo form time	3ms-6300ms
X-ray tube
Working voltage	40KV-125KV
Maximum power (0.1 S)	Small focus 20 kw, Large focus 40 kW
Nominal value	Large focus 1.2,Small focus 0.6
Maximum heating filament characteristics	5.3A
Anode speed (50HZ)	2800rpm
Anode angle	12°
Inherent filtering	1.0mmAL/75kV
Anode Heat Content	110KJ(150KHU)
Tube component heat capacity	900KJ(1300KHU
Flat Panel Detectors
Detector Technology	a-Si
Scintillator	CsI
Image Size	43×43 cm
Pixel Matrix	3072×3072 (17×17 in)
Pixel Pitch	140 μm
A/D Conversion	16 bit
Minimum Detectable Dose	14 nGy
Maximum Linear Dose (RQA5)	110 μGy
Spatial Resolution	3.6 LP/mm
Data Interface	GigE /802.11ac
Power Dissipation	20 W
Adapter Input	AC 100-240V,50-60Hz
Dimensions	46×46×1.5 cm
Computer
Intel i5 processor
8 G memory
2 G independent graphics card
128 G solid state hard disk 1 TB mechanical hard disk
PCI-E and ethernet dual gigabit network interface
22.5 inch dell professional small dot display
Operating system: win10
