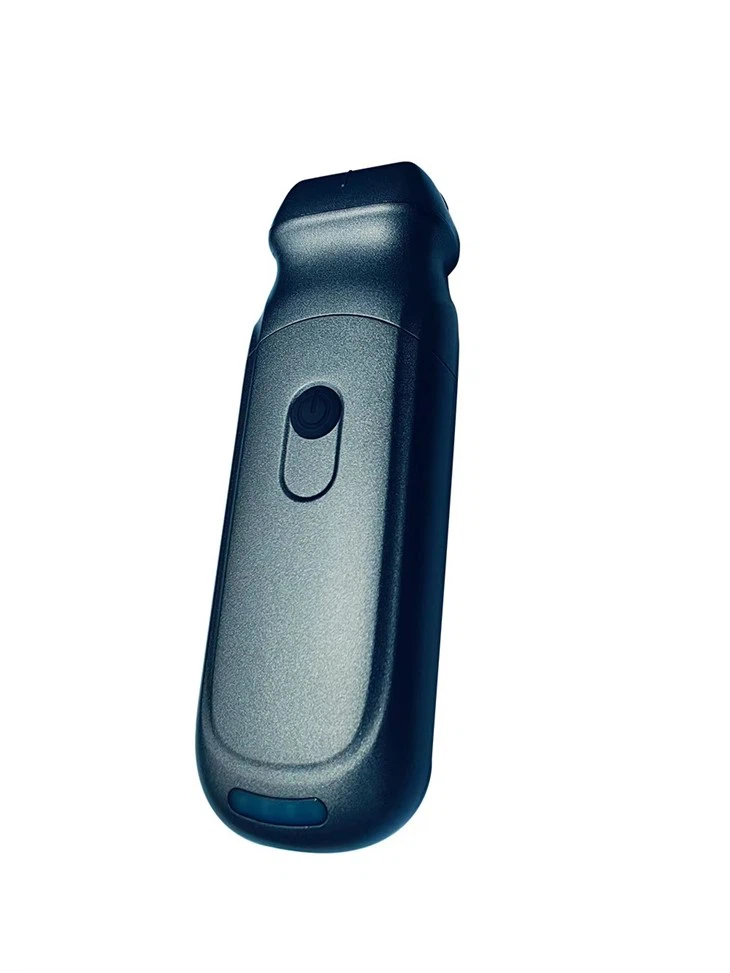

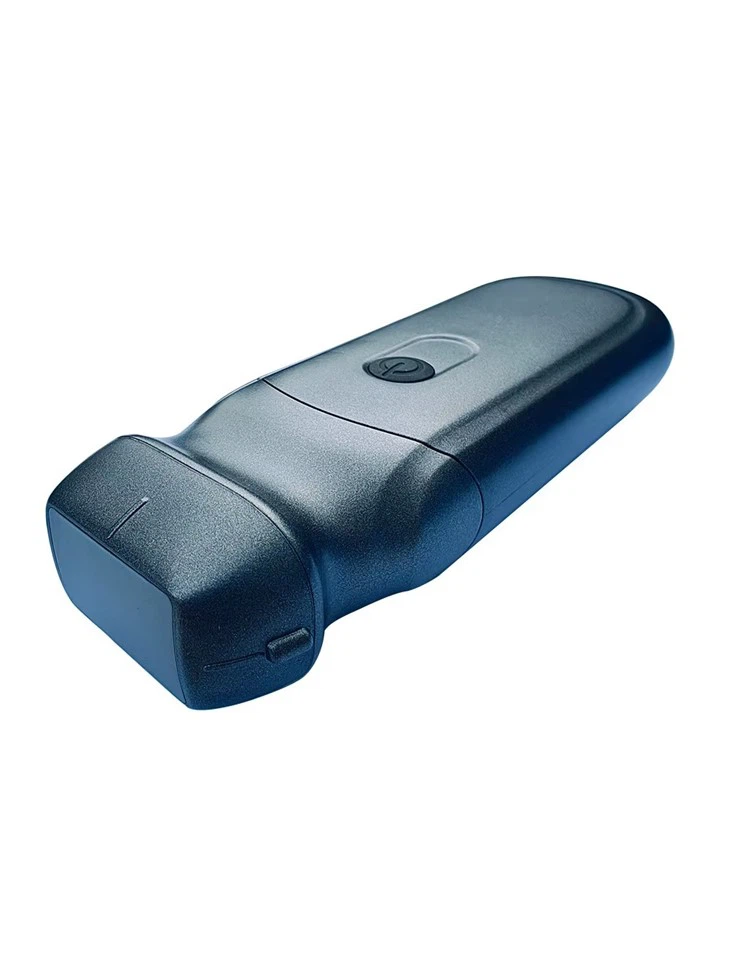

FTL-S9PA Wireless Mini Ultrasound Scanner with Dual Probes
Dual-Head Design | Smart Connectivity | Pocket-Sized Precision
The FTL-S9PA is a high-performance Wireless Mini Ultrasound Scanner with Dual Probes, built for mobility, simplicity, and clinical versatility. With a dual-head design (convex + linear probes), this handheld device allows both deep organ and superficial tissue scanning without changing probes-perfect for emergency care, point-of-care use, medical education, and home diagnostics.
Its compact body houses a high-resolution ultrasound engine, transmitting real-time images directly to smartphones or tablets via internal Wi-Fi, without needing any external signal or base unit.
🔹 Key Applications
Cardiac assessments
Abdominal imaging
Head and vascular scans
Medical education & training
Home care, primary care, family planning
Veterinary and mobile health services
🔹 Product Features
Dual Probe Configuration: One device for two major scan types-convex (abdominal) and linear (vascular/superficial).
Extremely Cost-Effective: Affordable enough for students, small clinics, and telemedicine providers.

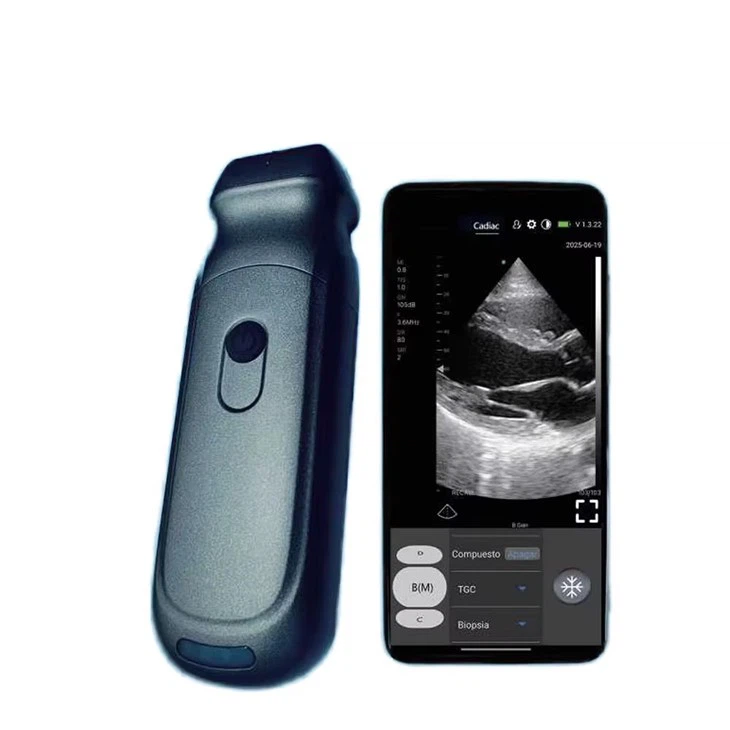

No External Display Needed: View live images directly on your phone or tablet using the dedicated app.
Built-in Battery & USB Charging: Up to 2 hours of wireless scanning; easy to recharge via laptop or USB.

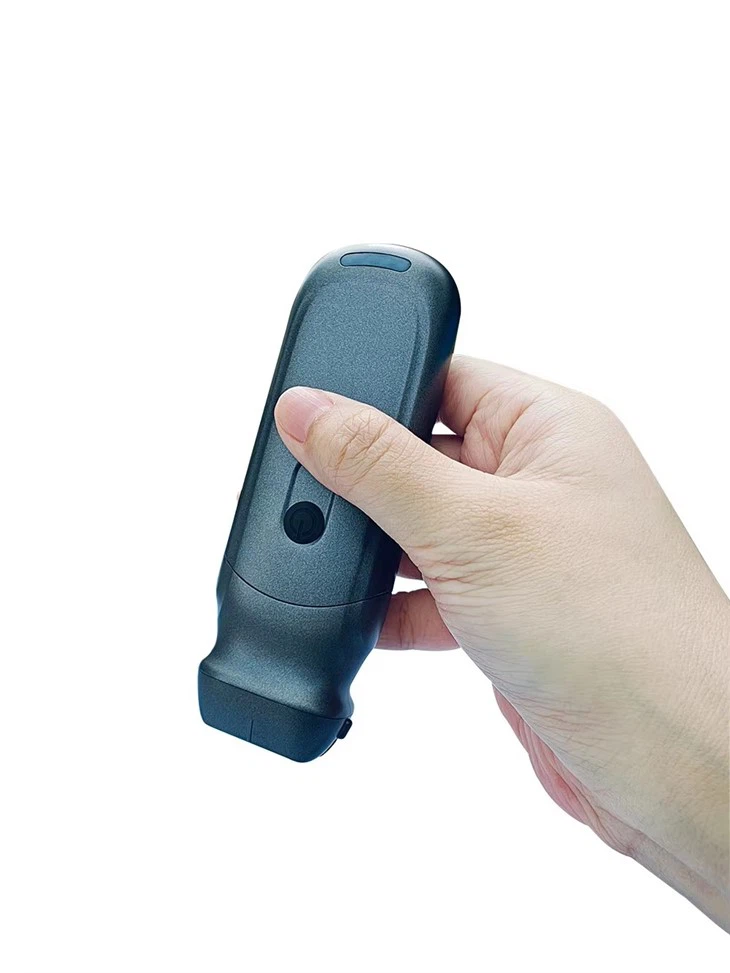

Portable & Lightweight: Only 165g, fits in a pocket or small medical bag.
Easy for Beginners: User-friendly design with a short learning curve, suitable even for those without prior ultrasound experience.

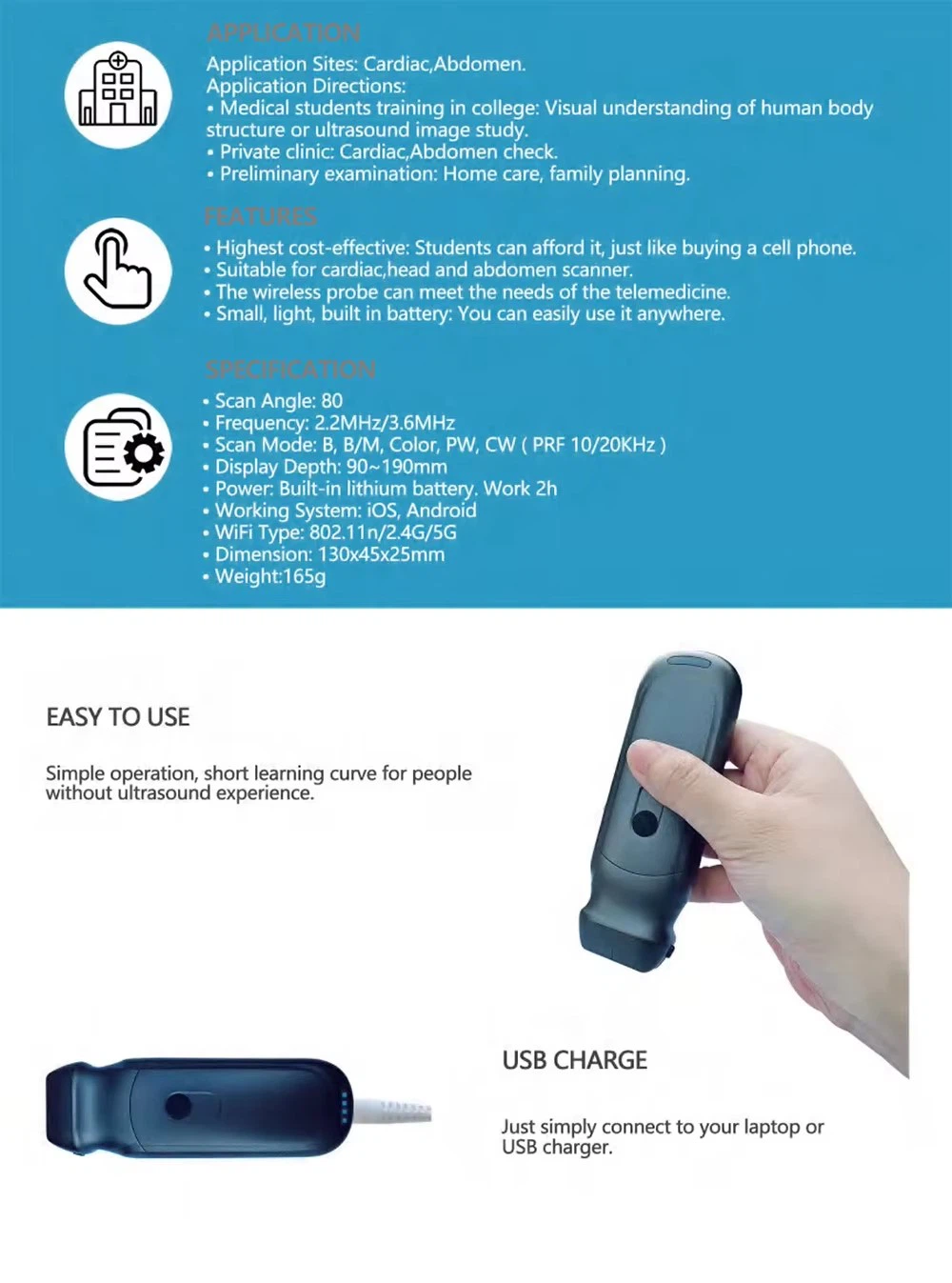

🔹 Technical Specifications
| Parameter | Value |
|---|---|
| Scan Angle | 80° |
| Frequency | 2.2 MHz / 3.6 MHz |
| Scan Modes | B, B/M, Color, PW, CW (PRF 10/20KHz) |
| Display Depth | 90 – 190 mm |
| Battery | Built-in lithium, up to 2h operation |
| OS Compatibility | iOS & Android |
| Wi-Fi | 802.11n / 2.4G / 5G |
| Dimensions | 130 × 45 × 25 mm |
| Weight | 165 g |
🔹 How It Works
The FTL-S9PA integrates its ultrasound engine directly into the probe. Images are transferred through its internal Wi-Fi to your mobile device-no external router or cable required. Just install the app, connect wirelessly, and start scanning in seconds.
🔹 OEM/ODM Support
We provide full OEM & ODM services, including:
Custom branding and logo printing
App UI localization
Private-label packaging
Custom probe frequency/configuration upon request
