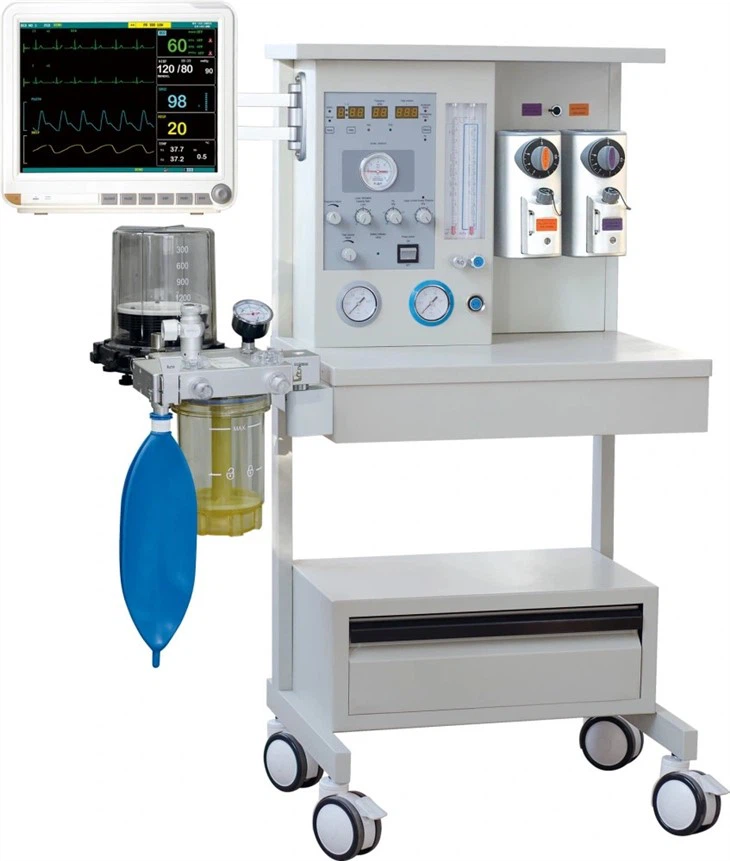

The Anesthesia Machine is engineered for clinical reliability and precision, delivering stable, user-friendly anesthesia management across diverse surgical and critical care environments.
Clinical Performance and Enhanced Monitoring:
The high-resolution LED display provides clear, real-time physiological monitoring, enhancing situational awareness for the anesthesia team.
The integrated electronic ventilator supports a comprehensive suite of essential ventilation modes, including A/C, IPPV, SIPPV, IMV, and SIMV, ensuring optimized lung protection and seamless support for complex patient management in both routine procedures and high-acuity cases.
Precision Gas and Agent Delivery:
Equipped with a 4-tube precision flowmeter system ($\text{O}_2 / \text{N}_2\text{O}$) and a high-accuracy, temperature-compensated vaporizer (options: Enflurane, Isoflurane, Sevoflurane, or Halothane), the system guarantees consistent, predictable anesthetic agent delivery with simplified operational protocols.
The expansive tidal volume range (50–1500 ml) universally accommodates the needs of adult and pediatric patient populations, making this unit an indispensable asset for general hospitals, specialized surgical centers, and critical care units demanding versatile backup solutions.
Durability, Versatility, and Future-Proofing:
Constructed from durable, medical-grade materials, this anesthesia workstation is designed for a long service life and minimal maintenance, ensuring stable performance and a favorable total cost of ownership (TCO) in high-demand facilities.
A dedicated manual mode is immediately accessible for emergency override.
The system offers modular flexibility through optional upgrades, such as the integration of a patient monitor or specialized vaporizer configurations, allowing the machine to adapt and scale with evolving clinical requirements and capital planning needs.
| Feature | Standard Model | Advanced Model | Economic Model |
|---|---|---|---|
| Startup Self-Test | ✅ Supported | ✅ Supported | ⚠️ Optional or Simplified |
| Display Type | High-brightness LED digital display | High-brightness LED + Smart interface | Basic LED digital display |
| Ventilation Modes | Assist/Control, Manual, etc. | Intelligent adaptive ventilation, Assist/Control, Manual, etc. | Basic Assist/Control, Manual |
| Tidal Volume Range | 50–1500 mL | 50–1500 mL | 50–1000 mL (expandable optional) |
| I:E Ratio Range | 1:1.5 – 1:3 | 1:1 – 1:4 (wider adjustable range) | 1:1.5 – 1:3 (fixed steps) |
| Respiratory Rate Range | 4–40 breaths/min | 4–60 breaths/min (extended range) | 6–30 breaths/min |
| Gas Flow Control | O₂/N₂O high-precision flowmeters, O₂ ≥21% | O₂/N₂O/Air multi-gas control, smart ratio adjustment | O₂/N₂O basic flow control, O₂ ≥21% |
| Vaporizer | Dual position, auto-compensated for Sevo/Enflurane/Isoflurane | Dual position, full auto-compensation, electronic control | Single position, manual compensation, common agents |
| Sensor System | Differential pressure + Infrared turbine flow sensor | Multi-sensor fusion + real-time feedback | Basic differential pressure sensor |
| Soda Lime Canister | Rotary integrated, hand-replaceable, withstands 176°C | Same as Standard + usage monitoring | Standard canister, manual replacement |
| System Integration | Can connect to monitor to form workstation | Supports anesthesia workstation, VSPAC, temp control integration | Basic anesthesia function, no advanced integration |
| Circuit Heating/AGSS | Optional | Standard or advanced optional | Not available or external only |
| Smart Features | Basic self-test and calibration | Dual-level monitoring, intelligent ventilation, data analysis | None |
| Applicable Scenarios | General OR, general hospitals | ICU, complex surgeries, teaching hospitals | Outpatient, dental, primary care, mobile medical |
| Price Positioning | Mid-range | High-end | Economy |
The Fatali-Med Anesthesia Machine is engineered to deliver stable, precise, and user-friendly anesthesia management across a wide range of clinical environments. Its LED display screen provides clear real-time monitoring, while the built-in ventilator supports essential ventilation modes including A/C, IPPV, SIPPV, IMV, and SIMV-ensuring smooth work for surgeons and anesthesiologists in both routine and critical cases.
Equipped with 4-tube flowmeters (O₂ / N₂O) and a high-accuracy vaporizer (Enflurane, Isoflurane, Sevoflurane, or Halothane), the system ensures consistent agent delivery with straightforward operation. The large tidal volume range (50–1500 ml) covers adult and pediatric applications, making it suitable for general hospitals, surgical centers, and ICU backup use.
A manual mode is available for emergency operation, and optional upgrades such as a patient monitor and Halothane vaporizer allow the machine to adapt to different clinical requirements. Built with durable medical-grade materials, this anesthesia workstation offers long service life, easy maintenance, and stable performance-even in high-demand facilities.
