DR Flat Panel Detector 1012V

1012V is a 10×12-inch, tethered cassette-sized FPD for radiographic imaging. It features a 125 µm pixel pitch with direct deposition CsI, and with a reliable AED enables a smart workflow. It is an excellent choice for various digital radiography applications, including podiatry and...

Send Inquiry

Product Introduction Specification

1012V is a 10×12-inch, tethered cassette-sized FPD for radiographic imaging. It features a 125 µm pixel pitch with direct deposition CsI, and with a reliable AED enables a smart workflow. It is an excellent choice for various digital radiography applications, including podiatry and extremity imaging, as well as neonatal applications.

Main-04

Main-05

Hot Tags: dr flat panel detector 1012v, China dr flat panel detector 1012v manufacturers, suppliers, factory, 32KW Veterinary X ray Machine, X ray Machine Rack For Vehicle, 4343Z Panel Detector, MRI room ultraviolet disinfection lamp robot, Floor mounted Machine, DR flat panel detector

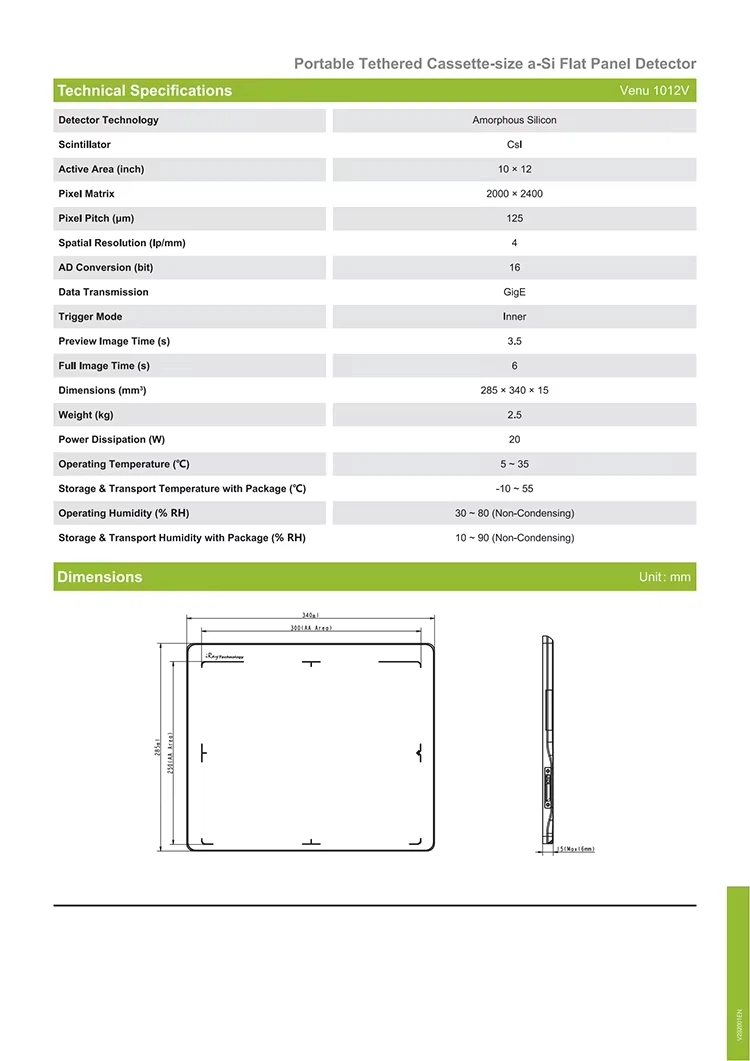

Detector Technology	Amorphous Silicon
Scintillator	CsI
Active Area (inch)	10 × 12
Pixel Matrix	2000 × 2400
Pixel Pitch (µm)	125
Spatial Resolution (lp/mm)	4
AD Conversion (bit)	16
Data Transmission	GigE
Trigger Mode	Inner
Preview Image Time (s)	3.5
Full Image Time (s)	6
Dimensions (mm³)	285 × 340 × 15
Weight (kg)	2.5
Power Dissipation (W)	20
Operating Temperature (°C)	5 – 35
Storage & Transport Temperature (°C)	-10 – 55
Operating Humidity (% RH)	30 – 80 (Non-Condensing)
Storage & Transport Humidity (% RH)	10 – 90 (Non-Condensing)
