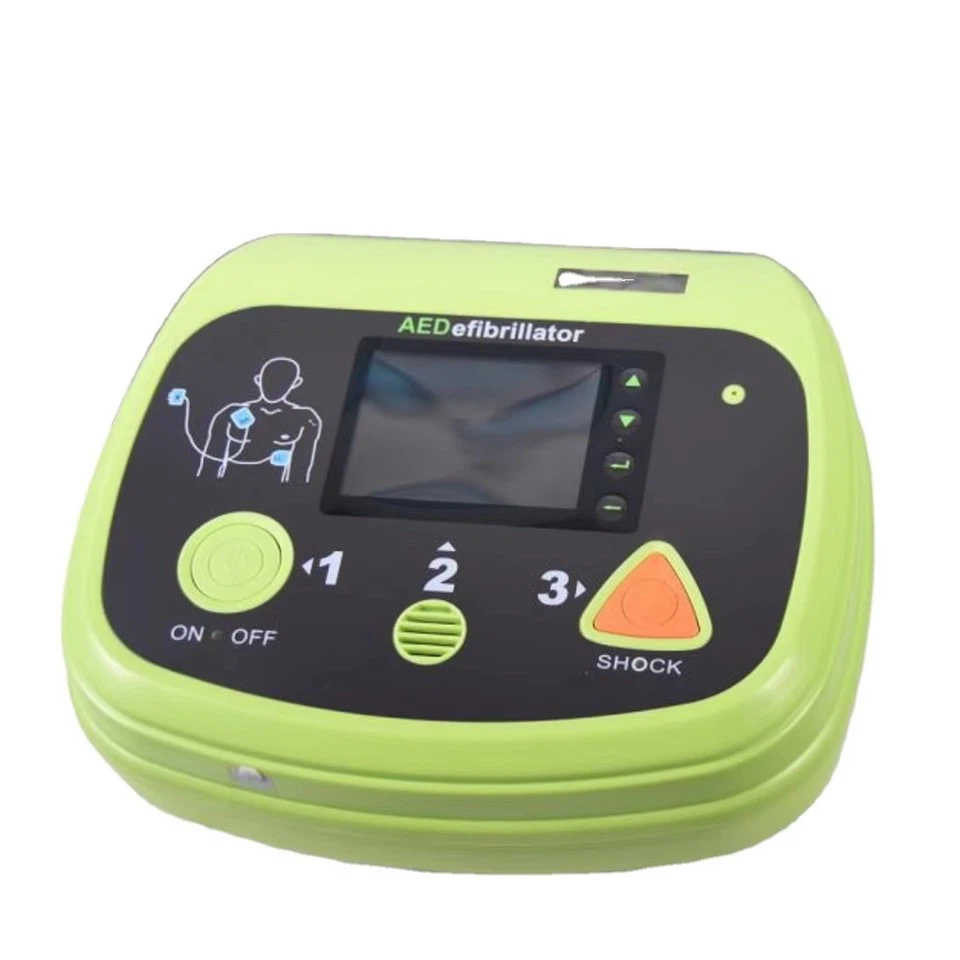

Portable Biphasic Defibrillator – Compact, Reliable, and Life-Saving
Our advanced portable biphasic defibrillator is designed to deliver rapid, accurate, and effective life-saving interventions in both adult and pediatric emergencies. Built for healthcare professionals, emergency responders, and public safety teams, this device combines high-performance defibrillation with intuitive operation to maximize efficiency during critical moments.
Key Features
3.5" High-Resolution Color Screen – Clear display for real-time guidance and monitoring.
Automatic Self-Testing – Ensures device readiness at all times.
Biphasic Energy Output – Optimized for safe and effective defibrillation.
CPR Metronome & Coaching (Optional) – Supports consistent and high-quality chest compressions.
Adult & Pediatric Modes – Configurable energy levels for different patient needs.
Comprehensive Voice & Visual Prompts – 19 audible and multiple LED visual cues for step-by-step guidance.
Technical Specifications
Output Type: Biphasic Truncated Exponential
Energy Sequence:
Adult: 150J → 150J → 200J
Pediatric: 50J → 50J → 85J (adjustable)
Charge Time:
8 sec to 150J
4 sec to 50J/100J
10 sec to 200J (new battery)
Analysis Time: 9 sec
Readiness to Discharge:
New battery: <20 sec
After 6 shocks: <25 sec
Power on to discharge: <30 sec
Energy Accuracy: ±15% (25–175 Ω)
Safety: Output disabled if impedance is outside 20–200 Ω
Battery & Power
Type: Non-rechargeable CR123A × 10
Capacity: 15V DC, 2.8Ah – 100 discharges at 200J or 120 discharges at 150J
Shelf Life: 5 years standby after installation
Physical & Environmental
Dimensions: 225 × 200 × 85 mm
Weight: 2.0 kg
Operating Temp: 0°C to 40°C
Operating Humidity: 30%–95% RH (non-condensing)
Storage Temp: -20°C to 55°C (without battery)
Storage Humidity: Up to 93% RH (non-condensing)
Why Choose This Defibrillator?
This defibrillator is engineered for speed, reliability, and ease of use. From first responders to hospital staff, its clear instructions, fast charging, and precision energy delivery make it a trusted choice in emergencies. The combination of robust design and long battery life ensures it's always ready when every second counts.
