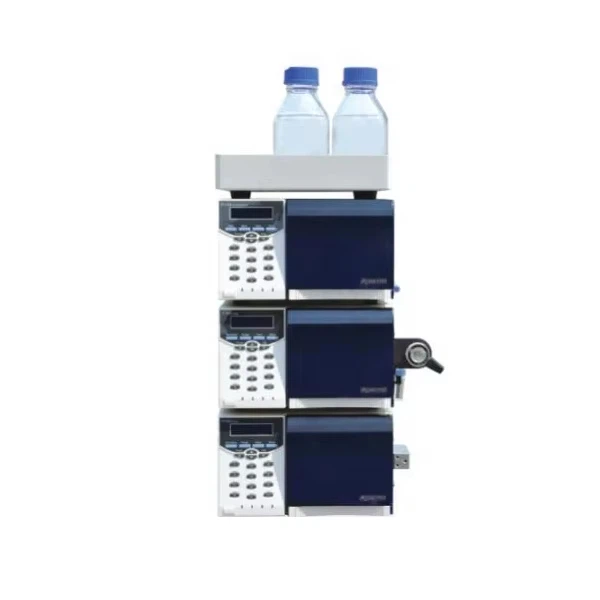

HPLC (High Performance Liquid Chromatography)
As a cost-effective product, YS-HPLC1100 series is suitable for use in the production or manufacture which needed to strict cost control. Features: *LCD display *Front-mounted self-locking switch *Small size, easy to place, save space *Standard configuration USB portspace
|
Model |
YS-HPLC1100I |
YS-HPLC1100G |
|
|
High Pressure Constant Flow Pump |
Double plunger reciprocating pump |
1 set |
2 sets |
|
Flow Range |
0.001mL/min-10.000mL/min |
||
|
Setting Step Size |
0.001mL/min |
||
|
Flow Accuracy |
≤±0.3% (1.00ml/min, H2O,R.T.,8.5MPa) |
||
|
Flow stability |
RSD≤0.1% (1.00ml/min, H2O,R.T.,8.5MPa) |
||
|
Maximum Pressure |
42MPa |
||
|
Display Pressure Error |
≤±3.0% |
||
|
Pressure Fluctuation |
≤1.0% |
||
|
Power Dissipation |
80W |
||
|
|
Wavelength Range |
190-700nm |
|
|
Wavelength Repeatability |
±0.1nm |
||
|
Wavelength Accuracy |
≤±1.0nm |
||
|
Spectrum Band Width |
8nm |
||
|
Response Time |
0.0s-4.9s |
||
|
Linearity Range |
1.8AU (5%) |
||
|
Baseline Noise |
≤±1×10-5AU |
||
|
Baseline Drife |
≤2.0×10-4AU/h |
||
|
minimum Detectable Concentration |
4.0×10-9g/mL(Naphthalene in Methanol Solution) |
||
|
Detector Cell |
Optical Path--10mm, Volume--10μL |
||
|
Light Source |
Deuterium Lamp |
||
|
Power Dissipation |
100W |
||
|
Gradient Mixer |
/ |
GM1100 |
|
|
Sampler Injector |
1 |
||
|
Supersil ODS2 5μm ID4.6×200mm |
1 |
||
|
Workstation (Without Computer & Printer) |
1 |
||
|
Valve Mounting Frame |
1 |
||
|
Kits |
Isocratic System Kits |
Gradient System Kits |
|
|
Power Supply |
AC110/220V±10%, 50/60Hz |
||
|
Optional Accessory |
Column Oven |
||
