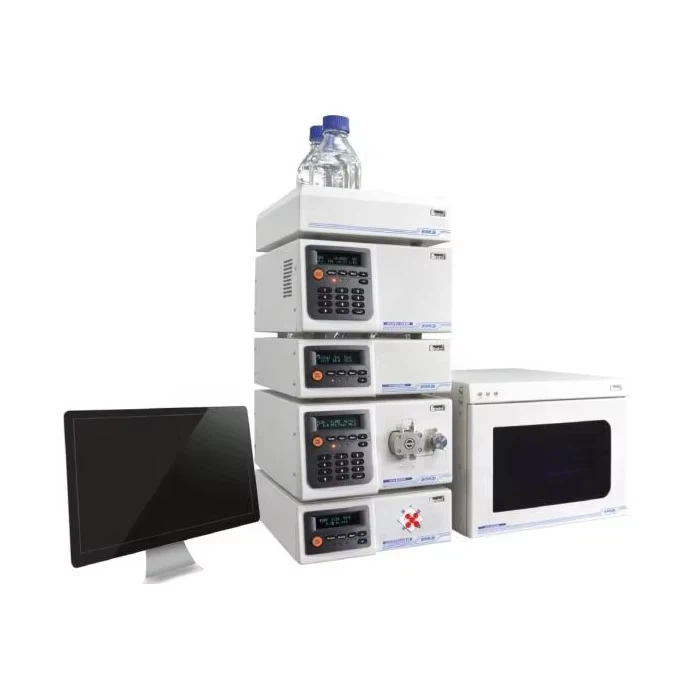

HPLC (High Performance Liquid Chromatography)
Application: YS-HPLC3100 series is the higher and more reliable quality product with samples analysis. Features: * Adopting mature and reliable mechanical structure, optical structure and circuit structure of core technology * Stepper motor 64 subdivision control technology to improve accuracy at low flow rates * Straight-through pressure transmitter * Scientific air duct design to effectively reduce baseline drift
|
Model |
YS-HPLC3100I |
YS-HPLC3100GH |
YS-HPLC3100QL |
|
|
High Pressure Constant Flow Pump |
Quantity |
1 Set |
2 Set |
1 Set |
|
Flow Rate Range |
0.001mL/min-10.000mL/min |
|||
|
Flow Accuracy |
≤±0.2% (1.00ml/min, H2O,R.T.,8.5MPa) |
|||
|
Flow Precision |
RSD≤0.075% (1.00ml/min, H2O,R.T.,8.5MPa) |
|||
|
Maximum Pressure |
45MPa |
|||
|
Pressure accuracy |
≤±3.0% |
|||
|
Pressure pulsation |
≤0.1MPa |
|||
|
UV/VIS |
Wavelength Range |
190-700nm |
||
|
Wavelength Repeatability |
≤0.1nm |
|||
|
Wavelength Accuracy |
≤±1.0nm |
|||
|
Band Width |
8nm |
|||
|
Response Time |
0.0s-5s |
|||
|
Baseline Noise |
≤±0.5×10-5AU |
|||
|
Drift |
≤1.0×10-4AU/h |
|||
|
Path length |
10 mm(analytical cell) |
|||
|
Light Source |
Deuterium Lamp |
|||
|
Low-Pressure Gradient Unit |
Integrated vacuum degasser |
/ |
/ |
4 channel |
|
Composition Rang |
0-100% |
|||
|
Composition Precision |
≤0.2% RSD |
|||
|
Composition Accuracy |
≤±2.0% |
|||
|
Data-processing Workstation |
Internal and external standard calculation methods |
|||
|
3100 System Kits |
1 Set |
|||
|
Power Supply |
AC110/220V±10%, 50/60Hz |
|||
|
Optional Accessory |
Column Oven, Autosampler, Degasser, Diode Array Detector, Refractive Index Detector, Evaporative Light Scattering Detector, |
|||
|
Package Size(W*D*H) |
600*440*380mm*4 |
|||
|
Gross Weight |
68kg |
|||
