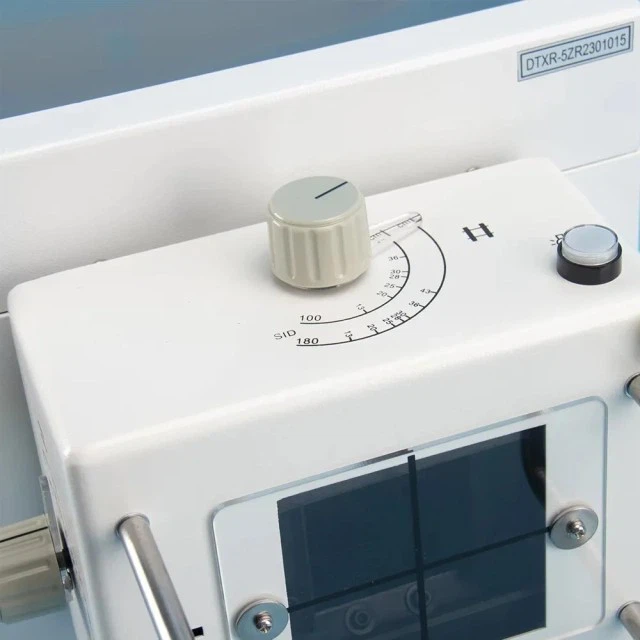

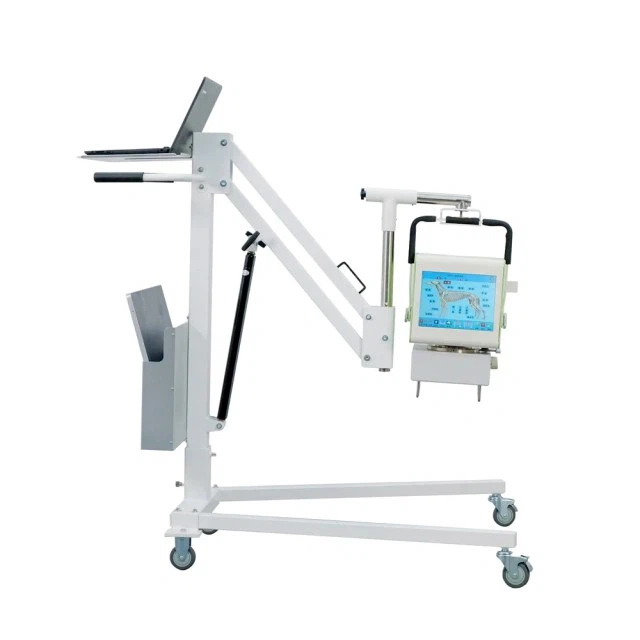

Mobile X-ray Stand For Veterinary X Ray Machines

High Quality Xray Stand FTL-PS1 for Digital X-ray Machine High Frequency And High Penetration X-ray Inspection Tools

Technical Specification

Generator

Product Model

FTLF056-PD

Product describtion/Type

Portable Combined High Frequency X-ray

Working frequency

80~200kHz

Input

Mains phase/Voltage

100~240VAC/48VDC

Frequency

50Hz/60Hz

Nominal/Max Power

5.6KW

KV Range

40~125KV

KV Rising Time

≤1ms@100KV(10%~90%)

Accuracy of KV

±5%

Output Max mA

100mA

Accuracy of Tube Current

±(5%+1mA)@210ms

±20%@<10ms

mAs Range Non-AEC

0.1~320mAs

Accuracy of mAs

±(5%+0.2mAs)@>5ms

±(10%+0.2mAs)@≤5ms

Exposure Time Range

2ms~10000ms

Accuracy Exposure Time

±(2%+0.2ms)@>5ms

±(5%+1ms)@≤5ms

Norminal Focal Spot Size

0.6mm/1.8mm

MBK parameters Max Anode Heat Storage

20kJ

Anode Disk Target Angle

15

Communication

RS232/WIFI

Certificate CE/Registration Certificate

ISO13485

Flat Panel
Detectors

Detector Technology

a-Si

Scintillator

CsI

Image Size

43×43 cm

Pixel Matrix

3072×3072 (17×17 in)

Pixel Pitch

140 μm

A/D Conversion

16 bit

Minimum Detectable Dose

14 nGy

Maximum Linear Dose (RQA5)

110 μGy

Spatial Resolution

3.6 LP/mm

Data Interface

GigE /802.11ac

Power Dissipation

20 W

Adapter Input

AC 100-240V,50-60Hz

Dimensions

46×46×1.5 cm

Computer

Intel i5 processor ;
8 G memory;
2 G independent graphics card;
128 G solid state hard disk 1 TB mechanical hard disk;
PCI-E and ethernet dual gigabit network interface;
22.5 inch dell professional small dot display;
operating system: win10.
