High Frequency DR 32KW Manual X Ray Machine

Power voltage： 1-phase 220VAC ±10%，50Hz，16A；3-phase 380VAC± 10%
Maximum Working Frequency：≥30KHz
Nominal Electric Power：32kw（@100kv，320mA，100ms）
KV range：40~125KV

Send Inquiry

Product Introduction Specification

It is a highly advanced state-of-the-art innovation with an affordable price but offers premium features, and low-dose imaging for your expectation, all packed into an economical, compact, and reliable system.

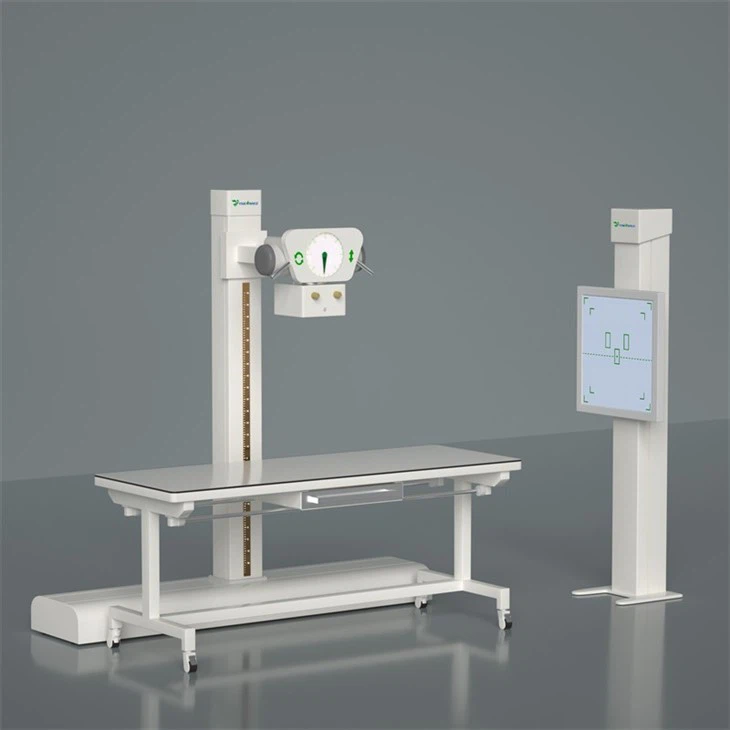

It enables it to be manually operated, fixed to the floor for stability and accuracy when taking images, and equipped with a combination of devices that include a floor-mounted X-ray suspension, vertically adjustable stand, flexible moving table with pulleys, high-frequency X-ray generator, advanced software, and easy positioning X-ray tube.

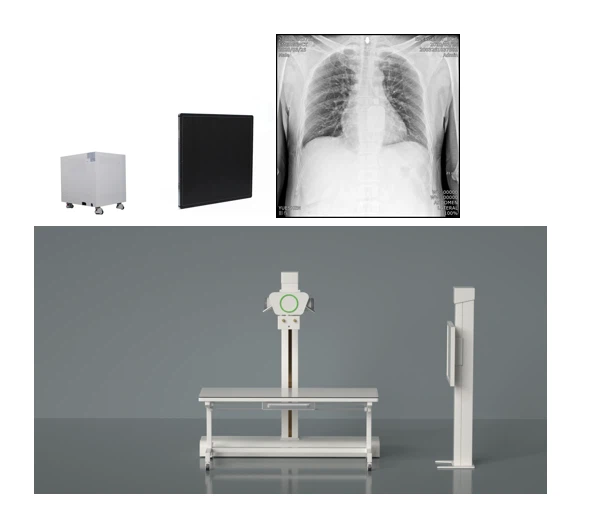

product-608-515

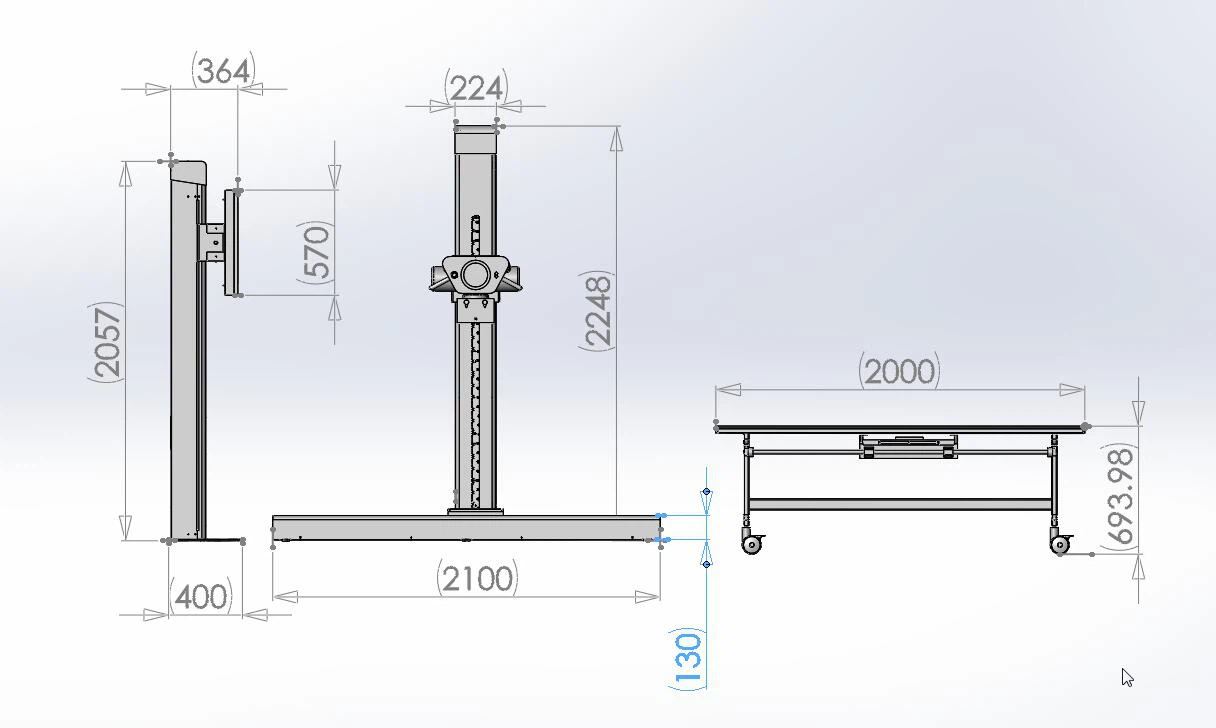

product-1216-728

product-1133-772

32kw/400mA Technical parameters of medical X-ray machine

Generator

1、 Power voltage： 1-phase 220VAC ±10%，50Hz，16A；3-phase 380VAC± 10%

2、 Maximum Working Frequency：≥30KHz

3、 Nominal Electric Power：32kw（@100kv，320mA，100ms）

4、 KV range：40~125KV

mA range：10~400mA

6、 mAs range：0.1~500mAs

Flat Panel Detectors

Detector Technology : a-Si Scintillator: CsI

Image Size: 43×43 cm

Pixel Matrix: 3072×3072 (17×17 in) Pixel Pitch: 140 μm

A/D Conversion: 16 bit

Minimum Detectable Dose: 14 nGy Maximum Linear Dose (RQA5): 110 μGy Spatial Resolution: 3.6 LP/mm

Data Interface: GigE /802.11ac Power Dissipation: 20 W

Adapter Input: AC 100-240V,50-60Hz Dimensions: 46×46×1.5 cm

Computer

Intel i5 processor ;8 G memory ,2 G independent graphics card ,128 G solid state hard disk 1 TB mechanical hard disk, PCI-E and ethernet dual gigabit network interface ;22.5 inch dell professional small dot display; operating system: win10.

product-453-206

Manual bed wooden box packing size:

bed: 2.23 * 1.12 * 0.94 m 430 kg

chest film frame: 2.2 * 0.65 * 0.5 m 100 kg

High Pressure: 62 * 52 * 72 CM 97kg

Packed Size:

Bed: 2.23 * 1.12 * 0.94 m 480kg

High Pressure: 62 * 52 * 72 CM 97 kg

Hot Tags: high frequency dr 32kw manual x ray machine, China high frequency dr 32kw manual x ray machine manufacturers, suppliers, factory, High Frequency 50kw 630mA Medical Manual Digital X ray Machine, High Frequency manual X ray machine, Floor-Mounted X-Ray Machine, Automatic X ray Machine, High Frequency DR 32KW Manual X Ray Machine, Floor mounted Machine

Generator
Power voltage	1-phase 220VAC ±10%，50Hz，16A；3-phase 380VAC± 10%
Maximum Working Frequency	≥30KHz
Nominal Electric Power	32kw（@100kv，320mA，100ms）
KV Range	40~125KV
mA range	10~400mA
mAs range	0.1~500mAs

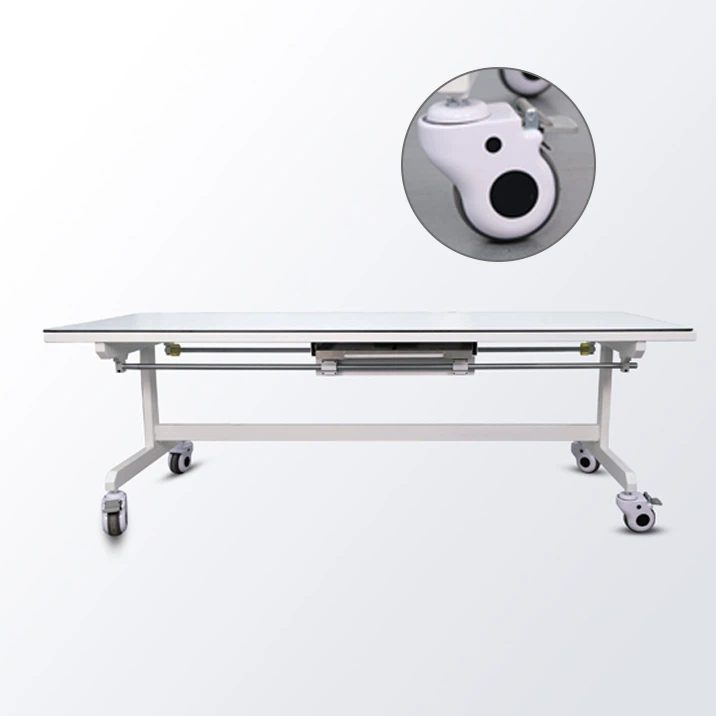

Filming Bed
Bed size	length 2000mmWidth 703mm Height 695mm (Castor height 150mm)
From Left to right movement distance of the tray under the bed	1065mm
X-ray tube ground track size	Length 2100445135mm
X-ray tube pillar size	Height 2085 * 260 * 220mm (a height of 2255mm after installation)
The Movement distance toward the front or back direction	1700mm
X-ray tube stand arm	Length 615mm
	The highest distance from the ground
	The lowest distance from the ground: 460mm
	The movement distance from up and down: 1350mm
Chest X-ray Holder
Holder size	Height 2055mm* Width 205mm* thickness 185mm
Chest X-ray box	Width 570mm*580mm
The highest distance from centre position to the ground	1730mm
The lowest distance from centre position to the ground	440mm
The distance of up and down movement	1290mm
Flat Panel Detectors
Detector Technology	a-Si Scintillator: CsI
Image Size	43×43 cm
Pixel Matrix	3072×3072 (17×17 in) Pixel Pitch: 140 μm
A/D Conversion	16 bit
Minimum Detectable Dose	14 nGy Maximum Linear Dose (RQA5): 110 μGy Spatial Resolution: 3.6 LP/mm
Data Interface	GigE /802.11ac
Power Dissipation	20 W
Adapter Input	AC 100-240V,50-60Hz
Dimensions	46×46×1.5 cm
Computer
Intel i5 processor
8 G memory
2 G independent graphics card
128 G solid state hard disk 1 TB mechanical hard disk
PCI-E and ethernet dual gigabit network interface
22.5 inch dell professional small dot display
operating system: win10
