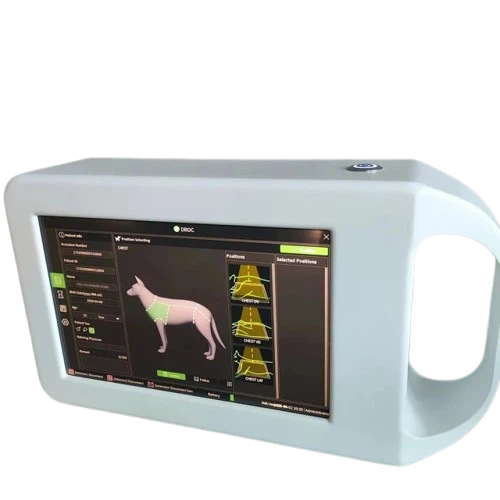

Ideal for X-rays of small individuals and animals; independently developed, compact, lightweight with an 8-inch touchscreen for easy operation. Features small focus and clear imaging. Includes DROC processing software, supports multiple languages, and complies with DICOM 3.0 protocol for PACS connectivity. Offers high-quality imaging, a customizable interface, and touchscreen support. Long battery life allows for over 100 shots on a full charge.
|
Project |
800W Portable X Ray Specification |
|
|
Charger |
Input |
mono-phase,AC power 220V±10% |
|
Frequency |
50Hz/60Hz±1Hz |
|
|
Output |
25.2 VDC ,1.5A |
|
|
Battery |
22.2V(polymer lithium ion),5000mAh |
|
|
kV |
40 -85 kV (step:1 kV ) |
|
|
mA |
1- 16mA (step:1 mA ) |
|
|
X-ray release time range |
0.03-0.20secs(step: 10millisecond) 0.010-4.00secs(step: 50millisecond) |
|
|
Screen |
8" inches (resolution: 1280x800) IPS |
|
|
X-ray tube |
Model |
|
|
Inherent filter |
0.5mm AL |
|
|
Focus point |
0.8X0.8mm |
|
|
CPU |
8G/16G,256GeMMC, WIFI6 |
|
|
Dimension |
280mm x 155mm x 65mm (length×width×height) |
|
|
Weight |
2.8kg±5% |
|
