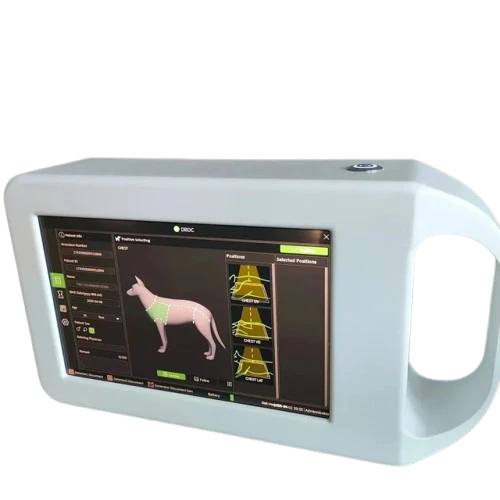

Ideal for performing X-rays on small individuals and animals; fully developed independently, compact, lightweight, and featuring an 8-inch touchscreen for easy operation. Offers small focus and clear imaging. Equipped with DROC processing software and supports multiple languages. The process is straightforward and aligned with DICOM3.0 protocol, allowing for seamless integration with PACS. Delivers high-quality image results with a customizable touchscreen interface. Offers long battery life, capable of over 100 shots on a full charge.
|
Project |
800W Portable X Ray Specification |
|
|
Charger |
Input |
mono-phase,AC power 220V±10% |
|
Frequency |
50Hz/60Hz±1Hz |
|
|
Output |
25.2 VDC ,1.5A |
|
|
Battery |
22.2V(polymer lithium ion),5000mAh |
|
|
kV |
40 -85 kV (step:1 kV ) |
|
|
mA |
1- 16mA (step:1 mA ) |
|
|
X-ray release time range |
0.03-0.20secs(step: 10millisecond) 0.010-4.00secs(step: 50millisecond) |
|
|
Screen |
8" inches (resolution: 1280x800) IPS |
|
|
X-ray tube |
Model |
|
|
Inherent filter |
0.5mm AL |
|
|
Focus point |
0.8X0.8mm |
|
|
CPU |
8G/16G,256GeMMC, WIFI6 |
|
|
Dimension |
280mm x 155mm x 65mm (length×width×height) |
|
|
Weight |
2.8kg±5% |
|
