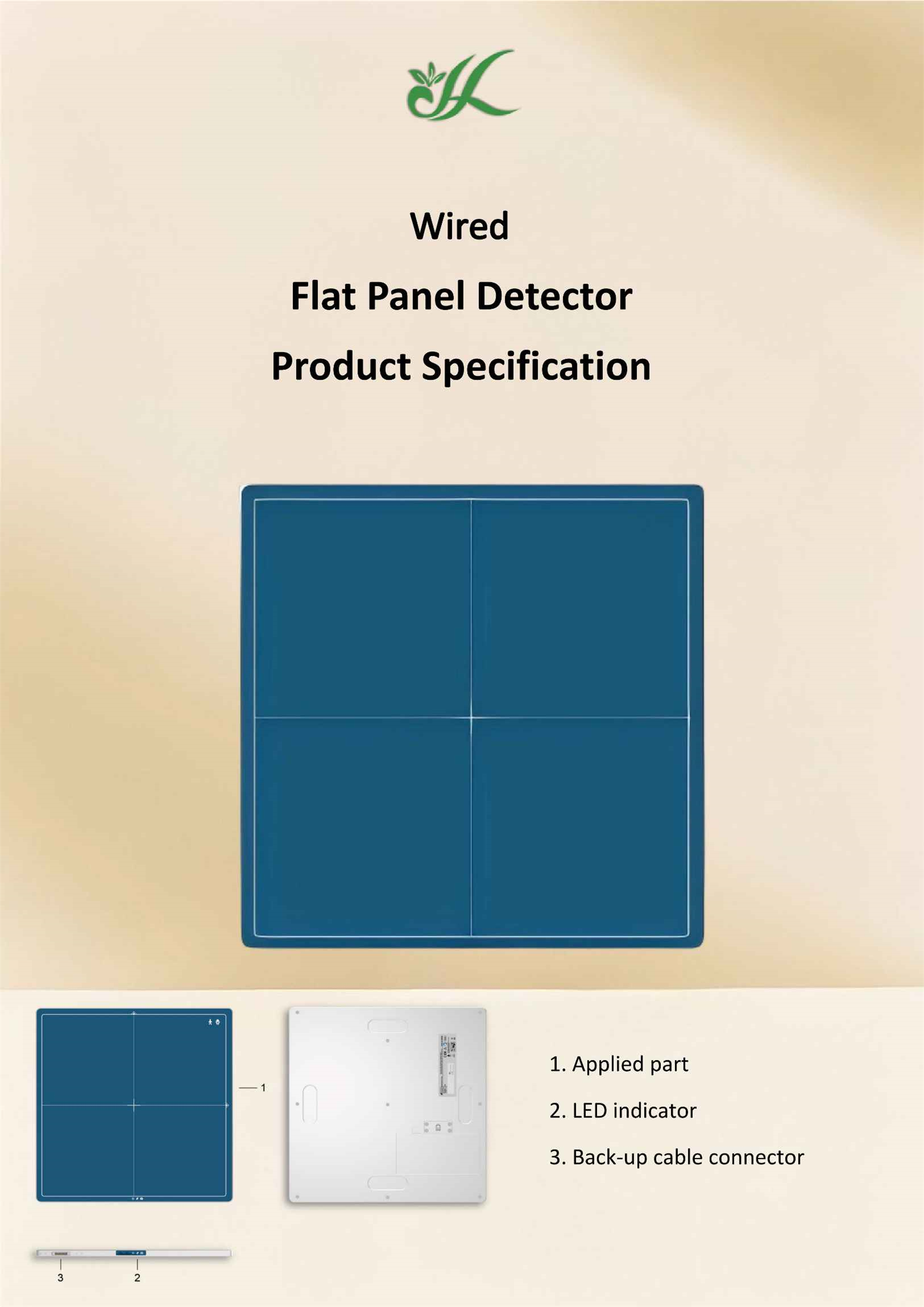

Wired Flat Panel Detector 17x17 | FTLV17CE High-Resolution CsI Digital X-Ray Detector
The FTLV17CE 17x17 Wired Flat Panel Detector is a high-performance digital radiography solution designed for superior image quality, fast workflow, and exceptional durability in medical and veterinary X-ray applications.
Key Features & Benefits
Advanced CsI Scintillator + a-Si TFT Technology: Delivers outstanding image clarity with a DQE of 0.48 and MTF of 0.69 at 1 lp/mm, ensuring excellent detail capture even at low doses.
High Resolution & Large Active Area: 140μm pixel pitch, 3072×3072 pixel matrix, and 433.2 × 433.2 mm active area for full-size imaging with sharp diagnostic results.
16-Bit AD Conversion & High Sensitivity: 574 LSB/μGy sensitivity and up to 88 μGy maximum linear dose provide wide dynamic range and excellent contrast.
Ultra-Fast Wired Performance: 3-second image acquisition time and 14.5-second cycle time via high-speed 1 Gbps Ethernet, significantly improving clinical efficiency.
Low Lag & Automatic Exposure Detection (AED): Less than 0.5% lag after 60 seconds and built-in AED for seamless integration and reliable exposure synchronization.
Robust & Lightweight Design: Only 3.6 kg with slim 15mm thickness. Withstands 150 kg uniform load, 100 kg local load, and drops up to 70 cm, making it highly durable for daily clinical use.
Wide Compatibility: Supports 40–150 kVp energy range, ideal for general radiography, trauma, and veterinary imaging.
Technical Specifications
Model: FTLV17CE (17×17)
Scintillator: Cesium Iodide (CsI)
Limiting Resolution: 3.57 lp/mm
Image Transfer: High-speed wired (1 Gbps Ethernet)
Dimensions: 460 × 460 × 15 mm (ISO 4090 compliant)
Weight: 3.6 kg
Operating Temperature: 10°C ~ 35°C
Certifications: ISO 4090 compliant
Engineered for hospitals, diagnostic centers, and veterinary clinics seeking a reliable wired flat panel detector with premium image quality and fast workflow, the FTLV17CE combines cutting-edge performance with rugged reliability.
Perfect for upgrading from CR systems to advanced digital radiography (DR).
Optimize your X-ray workflow with the FTLV17CE 17x17 wired flat panel detector - high DQE, fast acquisition, and proven durability in one powerful package.
