Animal Anesthesia Machine/Veterinary Anesthesia Machine
Model:YSAV710DV
YSAV710DV Veterinary Anesthesia Machine is an very excellent machine. It is portable and functional,which ensure it is a safe, stable and quality product. It is used in veterinary hospital, lab, farm and zoo etc. Gas Source:O2,O2&Air/N2O(Option); Flow Meter: 2 tubes O2,O2&Air(Option),O2&N2O(Option); O2 Flush:35-75L/min; Selectatec Mounting Bar: Single; CO2 Circle Absorber:Rebreath; ACGO Port: Non-Rebreath; One Key Switch: Switch between Rebreath or Non-Rebreath; Top Handle:Move easily; Safe Pressure Valve:less than10kpa; O2 Lost Alarm:Sound Alarm(Option); Screen:10.1"TFT touch Screen; Mode:VCV,PCV,SIMV-VC,SIMV-PC,PSV,Manual,SIMV-PRVC(Option); Electric PEEP; Battery Type:Li-ion,3 hours working; FiO2,EtCO2,EtAA(Option);

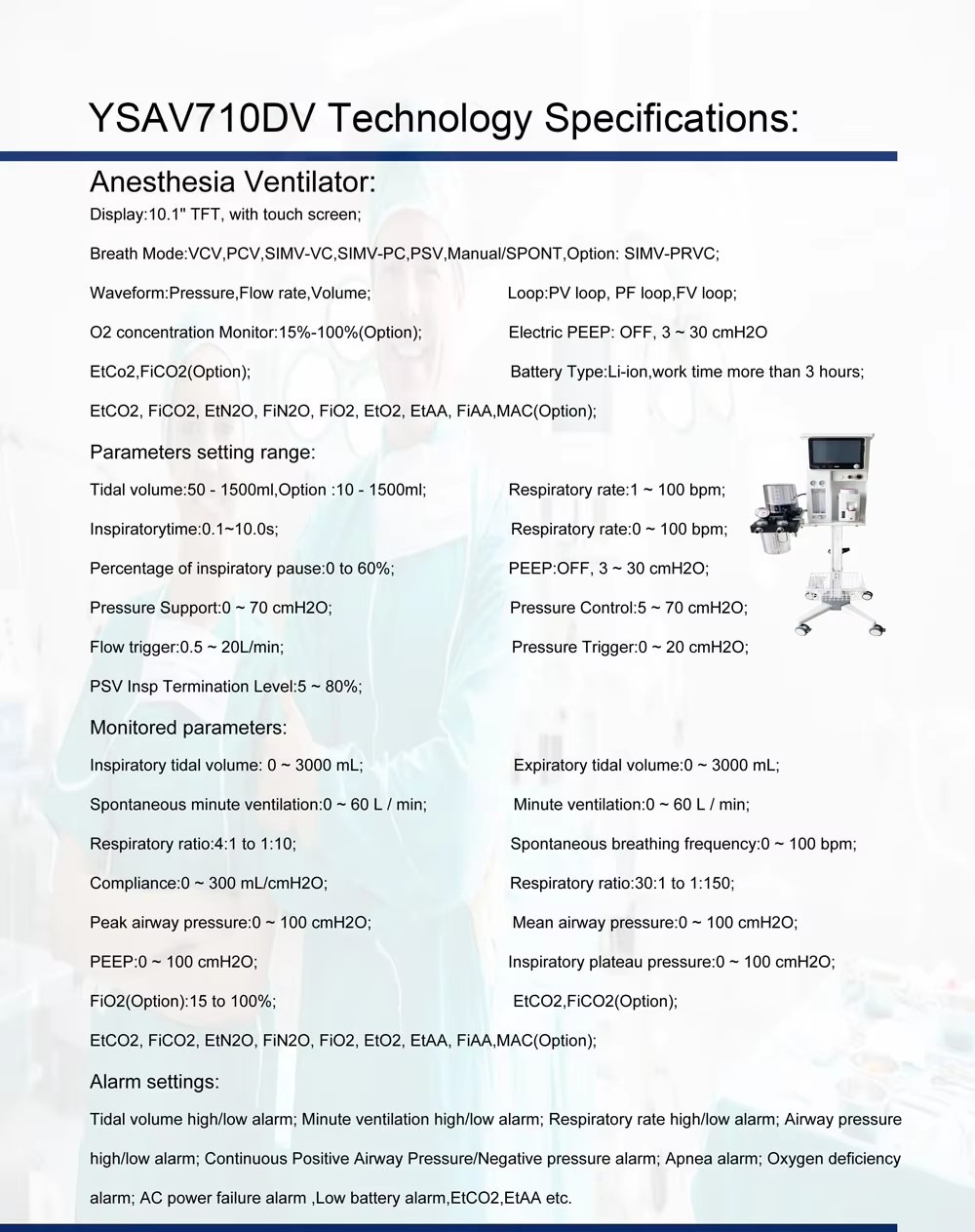

Specifications Gas Supply: Gas Source: O2,or O2&Air(Option), or O2&N2O(Option); Gas Source Pressure Gauge: O2,or O2&Air(Option), or O2&N20(Option); Pressure of Pipeline inlet: O2,280kPa~600kPa/41Psi~87Psi, less than 180L/min; N2O(Option),280kPa~600kPa/41Psi~87Psi,less than180L/min; Air(Option),280kPa~600kPa/41Psi~87Psi, less than 180L/min; Security Valve: release pressure less than 10 kpa; O2 Lost Alarm(Option):Sound alarm, alimumun cylinder with whistle; N2O cut off valve protection(Option): when O2 is lost, N2O will be cut off.
Flow Meter: 2 tubes high precision flow meter,0~1L/min,1.1L/min~10L/min; or 0L/min~10L/min(O2&Air or O2&N2O). Precision: At 20 degree, atmospheric pressure is 101.3kPa, the precision of flow meter is level:2.5; O2&N2O Linkage Device(O2&N2O,Option):make insure O2 concentration is not lower than 25%; O2 Flush: 35L/min~75L/min; One Key Switch: Switch between rebreath and Non-Rebreath; ACGO Port: Non-Rebreath; Selectatec Mounting Bar: single place used for vaporizer, it is easy to replace vaporizer; Anesthesia Vaporizer: one of lsoflurane/Halothane/Sevoflurane; Respiration System/CO2 Circle Absorber/Rebreath: Soda Llme Chamber: 800mL or 1600ml(Option); Airway Pressure Gauge:-20-100cmH2O; Pop Off Vlave: with one key to close; APL valve(Option): 0.19~6kPa;
Dimension&Weight: Trolley Stand: 55cm*56cm*153cm,50kg;
Standard Configuration: Anesthesia machine, one unit X60 Anesthesia vaporizer, one set adult disposable breath circuit. one set pediatric disposable breath circuit, 0.5,1.2,3L airbag, O2, or O2&N2O, or O2&Air gas source pipeline.
Alarm settings: Tidal volume high/low alarm; Minute ventilation high/low alarm; Respiratory rate high/low alarm; Airway pressure high/low alarm; Continuous Positive Airway Pressure/Negative pressure alarm; Apnea alarm; Oxygen deficiency alarm; Ac power failure alarm ,Low battery alarm,EtCO2,EtAA etc.
