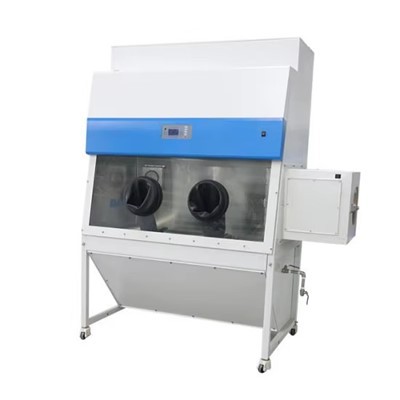

Biological safety cabinet is a kind of negative pressure device widely used in microbiology, biomedicine, gene recombination, animal experiments, biological products , other fields of
scientific research, teaching and clinical examination.
It adopts the advanced air purification technology and vacuum box design to protect the environment, people and samples, which is the basic laboratory bio-safety protection equipment.
Used in laboratories with one to three level of bio-safety . Applicable objects is in BSL 2 and BSL 3.
When air outlet is connected with outside, this equipment can also be applied for biology experiments with trace volatile toxic chemicals and limited radionuclides as additives.
|
Model |
BHC-1000 II A2 |
BHC-1300 II A2 |
BHC-1600 II A2 |
|
|
Clean level |
ISO 5( Class 100)/ISO 4(Class 10) |
|||
|
Filter level/ Filter Efficiency |
@0.3~0.12μm≥99.995%~99.999%
|
|||
|
Down flow Air Velocity |
0.25m/s~0.5m/s
|
|||
|
Inflow Air Velocity |
≥0.5m/s |
|||
|
Noise |
≤67dB(A) |
|||
|
Vibration Half Peak |
≤5μm |
|||
|
Power |
AC 220V/50Hz, single phase |
|||
|
Biological protection air balance |
Operator protection(Repeat for 3 times) |
a. Total colony of impact mining pattern ≤10CFU./time b. Total colony of crack type sampling ≤5CFU./time
|
||
|
Sample protection(Repeat for 3 times) |
Total colony ≤5 CFU./time |
|||
|
Cross-contamination protection(Repeat for 3 times) |
Total colony ≤5 CFU./time |
|||
|
Max. Consumption (KVA) |
≤1500KVA(with spare socket) |
|||
|
Weight (Kg) |
150 |
200 |
250 |
|
|
Work room size (W*D*H) (cm) |
100x57x63.5 |
130x57x63.5 |
160x57x63.5 |
|
|
Outer size (cm) |
120x85.5x235 |
150x85.5x235 |
180x79.5x235 |
|
|
Fluorescent tube Size &Quantity
|
30W×2 |
40W×2 |
40W×2
|
|
|
UV Lamp Size & Quantity |
20W×1 |
30W×1 |
40W×1 |
|
|
Luminance |
≥650lx |
|||
|
Diameter of air outlet |
Φ200 |
Φ250 |
||
|
Wind direction |
From the top |
|||
