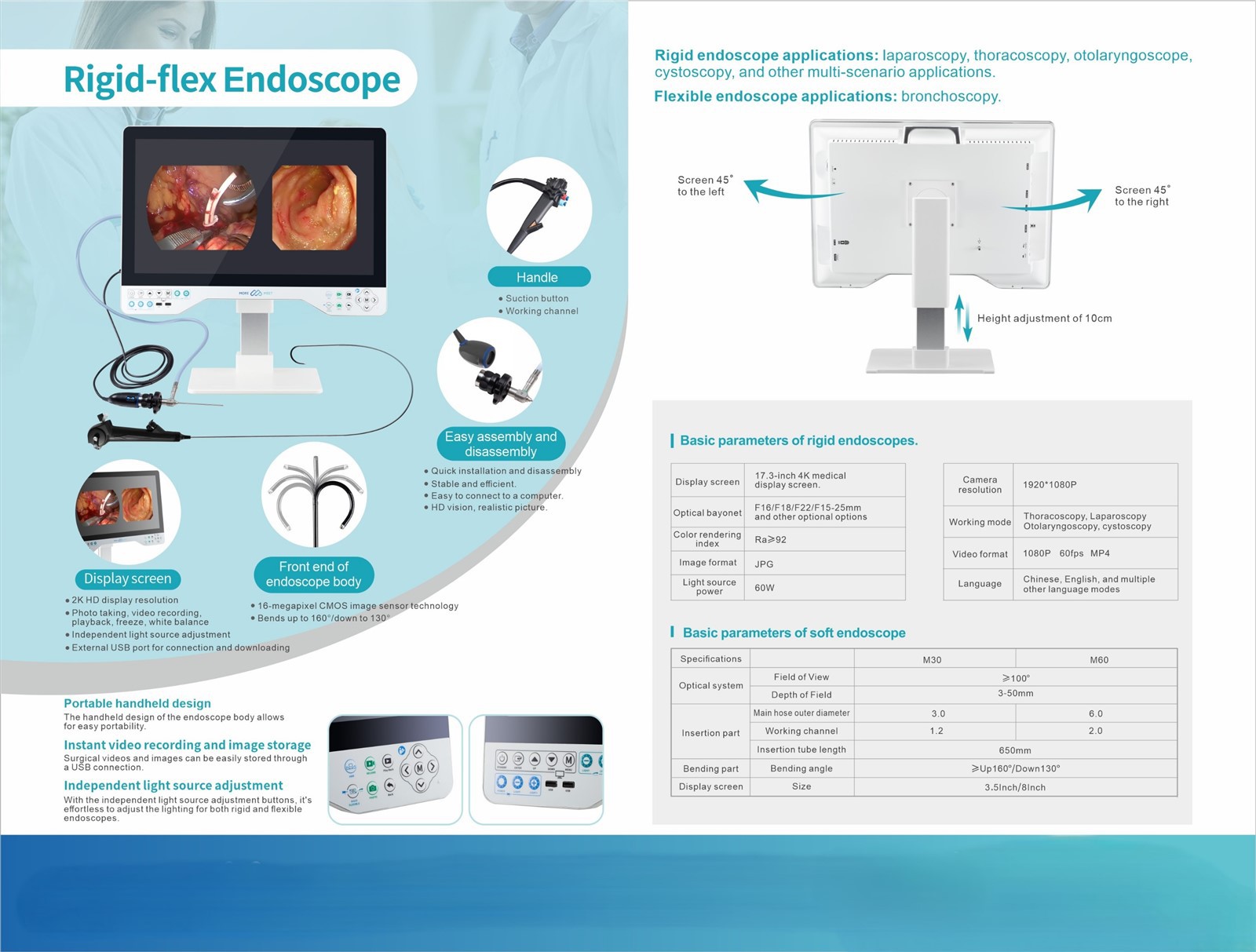

Rigid-Flex Endoscope
High-Resolution Display:
4K HD display ensures crystal-clear visuals for accurate diagnosis.
Supports photo capture, video recording, and playback for comprehensive documentation.
Built-in independent light adjustment for optimal visualization.
External USB port for convenient data transfer and storage.
Advanced Camera Technology:
Equipped with a 16-megapixel CMOS imaging sensor for sharp and detailed visuals.
Front-end design supports a wide bending range (160° upward, 130° downward), enabling thorough exploration.
User-Centric Handle Design:
Includes a suction button and working channel for seamless functionality during procedures.
Easy Assembly and Disassembly:
Quick and stable setup process for enhanced efficiency.
Compatible with computers for HD imaging and real-time connection.
Portable and Versatile Design
Handheld and Lightweight: Designed for portability, ensuring ease of use in any clinical environment.
Built-in Light Source Adjustment: Independent left and right light control enhances visibility for challenging cases.
Instant Video Recording and Image Storage: Seamlessly store and transfer files via USB connection.
Basic Parameters of Rigid Endoscopes
| Parameter | Details |
|---|---|
| Display Screen | 17.3-inch 4K medical display screen |
| Optical Bayonet | F16/F18/F22/F15-25mm and other optional options |
| Color Rendering Index | Ra≥92 |
| Image Format | JPG |
| Light Source Power | 60W |
| Camera Resolution | 1920*1080P |
| Working Mode | Thoracoscopy, Laparoscopy, Otolaryngoscopy, Cystoscopy |
| Video Format | 1080P 60fps MP4 |
| Language | Chinese, English, and multiple other language modes |
Basic Parameters of Soft Endoscopes
| Specifications | M30 | M60 |
|---|---|---|
| Field of View | 120° | ≥100° |
| Depth of Field | 3-50mm | 3-50mm |
| Main Tube Outer Diameter | 3.0 | 6.0 |
| Working Channel | 1.2 | 2.0 |
| Insertion Tube Length | 650mm | 650mm |
| Bending Part | Bending Angle | Up160°/Down130° |
| Display Screen | Size | 3.5inch/8inch |
